We took the unparalleled EZ Loader
and made it even more user friendly!
The new EZ Loader can now handle a
wide range of weight capacities from
250 lbs up to 4,000 lbs.
To make it even better, we added
the EZ Adjust knob - a three
position knob that allows
adjustment of the collapsed capacity
without changing the air pressure!
EZ Loaders are designed to eliminate
worker bending by automatically raising
and lowering pallets during loading or
unloading without the use of mechanical
springs, motors or hydraulics.
EZ Loaders also allow easy pallet
rotation for near-side loading so the
worker does not have to reach or
strain. As the load weight
changes, the EZ Loader
automatically adjusts, keeping
the top of the load at a convenient
working height. The patented pneumatic
system found only on the EZ Loader
has proven to be the choice of industry
professionals worldwide.
Applications
Bishamon EZ Loaders are excellent additions to any loading or unloading process using pallets as the transportation medium. They reduce worker fatigue, improve safety and minimize
situations which can lead to back injuries or damage to sensitive products. Typical applications are in manufacturing, processing and distribution.
Standard Features
• Load weight compensation keeps the top of
the load at a convenient working height
• System easily adjusts for varied loads
without guessing or changing of springs
• Firestone Airstroke Actuator™ raises and
lowers the table platform to vertically
position the pallet to a convenient height
• Firestone tests each Airstroke Actuator™
and warrants them for life against
workmanship or material defects
• No mechanical springs, uses captive air to
pressurize the Airstroke Actuator™ and a
bleed valve for capacity adjustments
• Self-dampening operation
• Heavy-duty, structural steel construction
with rugged base frame
• Pressure relief valve prevents excess
pressures
• Entrapped rollers for added stability
• Hinged maintenance bars
• 43” diameter rotator ring on top of unit with
secured center pivot
• Ball bearing center pivot on rotator ring
provides smooth, even rotation
• Finger guards under rotator ring are
standard on EZ Loaders
• Custom designed air gauge indicates
system pressure in both english and metric
scales
• Clean design with minimum of maintenance
needed
• Surfaces phosphatized with durable powder
coated finish
• Easily transported with fork lift
• Product comes fully assembled
Advantages
• Totally self-contained, does not require
constant air supply
• Self-raising and lowering of the pallet as
load weight changes
• Years of trouble-free use
• No springs to change or estimating of weight
• Simple adjustments of weight capacities to
work requirements
• Self-dampening eliminates the need for
shock absorbers
• Rotator ring minimizes walking and reaching
during the loading process
• Smooth, even rotator ring motion improves
worker efficiency
• Work is always at the optimum level so
worker does not have to bend, stretch or
strain
• Requires very little maintenance
Hours: 8:00a.m. - 5:00p.m. EST
Phone: 336-253-8766
Fax: 336-605-5248
Email: sales@reighleyresources.com
Fax Your Orders: (336) 605-5248
Call to Order: (336) 253-8766
All Content @2011 Reighley Resources - 2209 Patterson Ct. Greensboro, NC 27407
336-253-8766
Sales@reighleyresources.com
336-605-5248
Robby Reighley
Home
| MODEL | DESCRIPTION | 1-3 Units | Purchase | 4 + Units | Purchase |
|---|---|---|---|---|---|
| EZ-BRK | Rotator Ring Brake to Prevent Rotation | ||||
| EZ-ABS | Accordian Bellows Skirting with Frame | ||||
| EZ-SLP | Semi-Live Portability for Moving Unloaded Lift (2 Wheels, Dolly Handle | ||||
| EZ-CART | Cart Portability with 2 Swivel, 2 Rigid Wheels (Add 7'' to Lowered Height) | ||||
| EZ-SRT | Solid 43'' Diameter Round Top | ||||
| EZ-4444 | Oversize Rectangular Rotating Platform (44'' x 44'') | ||||
| EZ-4448 | Oversize Rectangular Rotating Platform (44'' x 48'') | ||||
| EZ-4848 | Oversize Rectangular Rotating Platform (48'' x 48'') | ||||
| EZ-SRT-DNT | Solid 43'' Diameter Round Top with 90 Degree Detents | ||||
| EZ-4444_DNT | Oversize Rectangular Rotating Platform (44'' x 44'') with 90 Degree Detents | ||||
| EZ-4448-DNT | Oversize Rectangular Rotating Platform (44'' x 48'') with 90 Degree Detents | ||||
| EZ-4848-DNT | Oversize Rectangular Rotating Platform (48'' x 48'') with 90 Degree Detents | ||||
| EZ-TT | Floor Mounted 4,500lbs Capacity, 43'' Diameter Rotating Turntable |
| Model | Description | 1-3 Units | Purchase | 4 + Units | Purchase |
|---|---|---|---|---|---|
| EZ LOADER | Standard Powder Coated Finish | $2,350.00 | $2,195.00 | ||
| EZ LOADER-E | FDA Compliant Powder Coated Finish with Stainless Solid Rount Top | ||||
| EZ LOADER-SS | Grade 304 Stainless Steel with Electro-Polished Finish | ||||
| EZ LOADER-2848 | Fixed Non-Rotating Platform 28'' x 48'' | ||||
| EZ LOADER-3648 | Fixed Non-Rotating Platform 36'' x 48'' |
Bishamon EZ LOADER MODELS

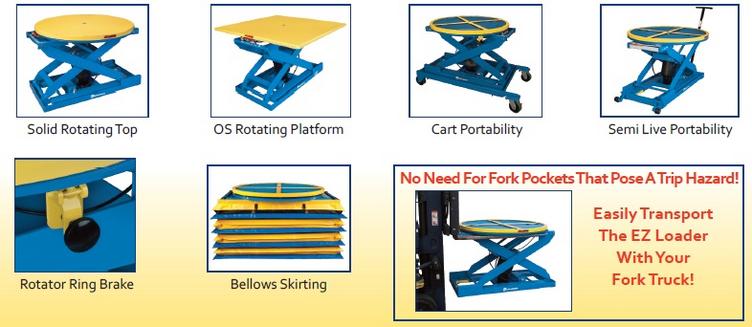

EZ LOADER ACCESSORIES
